The thermally separated stand-off installation in external thermal insulation composite systems

Stand-off installation TherMax 10

Name: Stand-off installation TherMax 10
Brand: fischer

The fischer stand-off installation system TherMax 10 is a solution for thermally separated fixation in external thermal insulation composite systems (ETICS). The threaded rod has a glass-fibre-reinforced cone and cuts its own way through the plaster and into the insulation material without a setting tool. The cone on the head of the threaded rod interrupts the thermal bridge. The adjustable system is suitable for fixations in ETICS and non-load-bearing layers of 80 mm to 240 mm in thickness. The fischer TherMax 10 can hold medium-sized loads such as lights, letterboxes, and lightning rods in concrete, aerated concrete, and masonry made from perforated or solid brick.

Варианти на продуктите

Download of image data

Варианти на продуктите

30 Варианти на продукта

Drill diameter

Drill hole depth

Max. thickness of non-bearing layer

Anchorage depth

Cover cap-ø

Width across nut

Повече резултати

Разгледан(и) 18 от 30 вариант(а)

Advantages

The stand-off installation allows for the fixture to be adjusted to the exact position required, whereby pressure marks and damage to the ETICS are avoided.
The plastic cone creates a thermal barrier between the fixture and the inner fixture, and offers an energy-optimised fixing.
The glass-fibre-reinforced plastic cone cuts its own way through the ETICS with a positive fit, and allows for a simple and fast installation without the need for any special tools.
Combining with the universal plug UX provides a secure anchoring in the substrate.

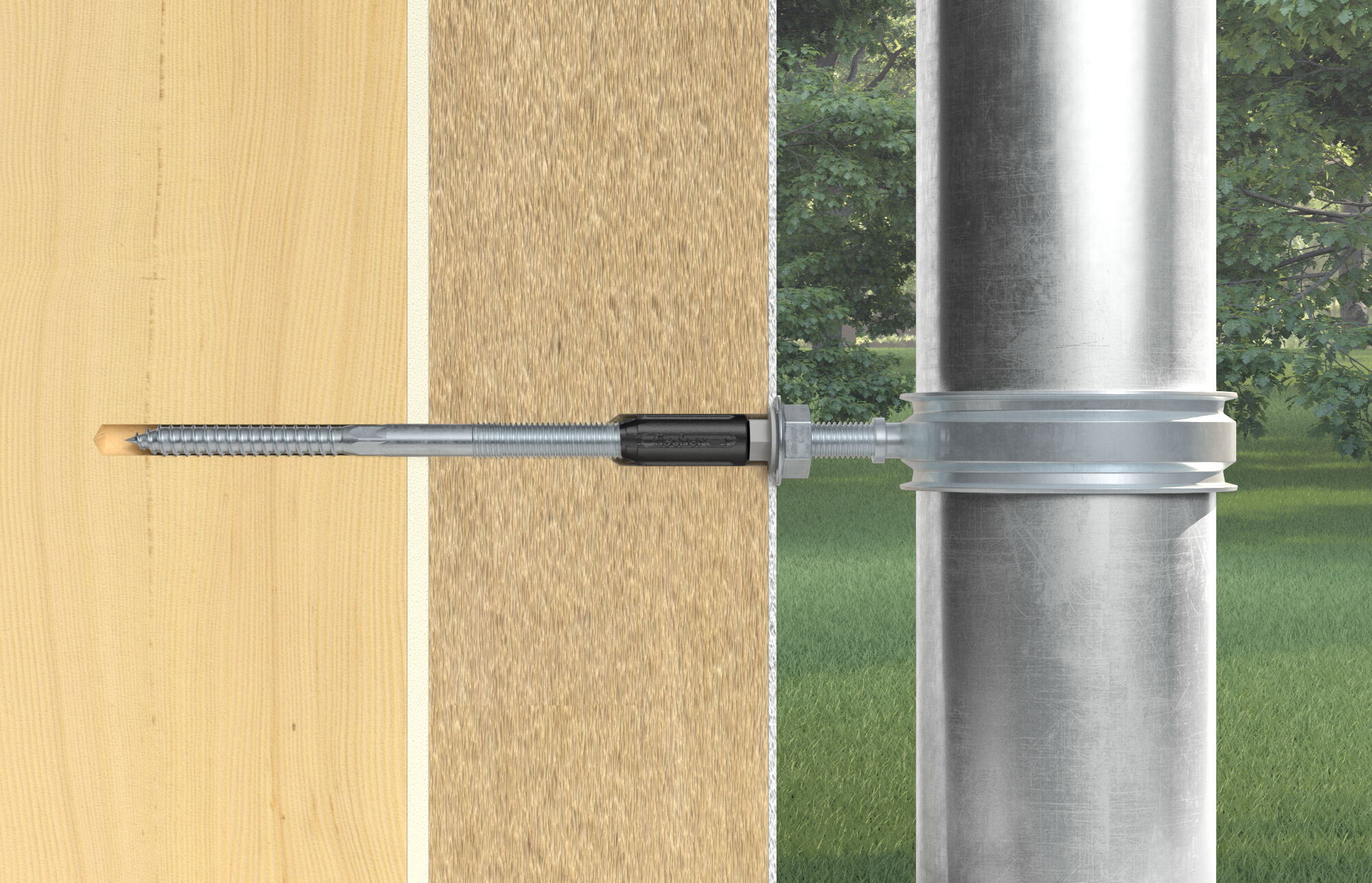

Without UX plug direct mounting in wood substrate is possible after pre-drilling.

Applications

For the thermally separated fixing of:

Signs

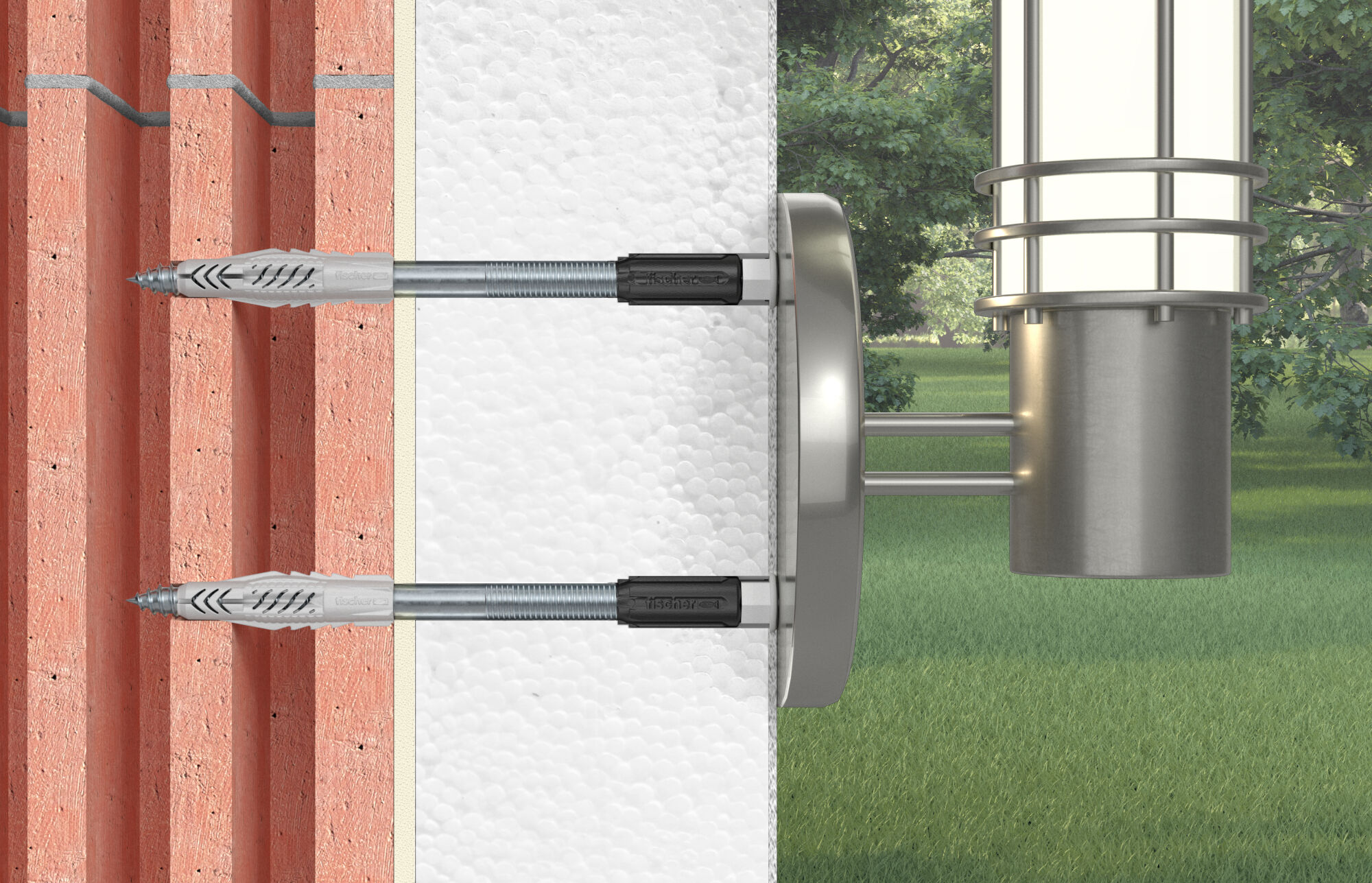

Lighting
Letter boxes
Motion detectors
Downpipes
Lightning rods
Blind guide rails

Building materials

Concrete
Vertically perforated brick
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Solid sand-lime brick
Building brick
Aerated concrete
Wood

Подробна информация за строителните материали можете да намерите в регистрационния документ.

Functionality

The TherMax 10 system is suitable for pre-positioned installation.
The self-tapping, glass-fibre-reinforced cone cuts its own way through the plaster into the insulation during installation.
The anti-cold cone uses a thermal barrier to minimise heat losses.
Installation without any special tools.
For use in wood without plug, the wood (footnote below load table) as well as the plaster has to be pre-drilled: TherMax 10: d02 = 18 mm, h02 = 50 mm.
The range features fitting options with metric screws M6/8/10, sheet screws 6.3 mm, chipboard screws 6.0 mm or chipboard screws 4.5 - 5.5 mm when using an SX Plus 5 plug.

Mounting Strip 1 Picture

1 / 8

Mounting Strip 2 Picture

1 / 6

Системни компоненти

Drill diameter ( d₀ )	12 mm
Drill hole depth ( h₀ )	160 mm
Max. thickness of non-bearing layer ( e )	80 - 100 mm
Anchorage depth ( h_ef )	70 mm
Cover cap-ø ( ADK )	22 mm
Width across nut	13 mm
Chipboard / metric / sheet metal screw	4.5 - 6.0 / M6 / 6.3
Contents	TherMax, UX 12 x 70, SX Plus 5 x 25, cover cap
Packaging	Folding box
Amount	20 pcs.
GTIN (EAN-Code)	4006209456927

Drill diameter ( d₀ )	12 mm
Drill hole depth ( h₀ )	180 mm
Max. thickness of non-bearing layer ( e )	100 - 120 mm
Anchorage depth ( h_ef )	70 mm
Cover cap-ø ( ADK )	22 mm
Width across nut	13 mm
Chipboard / metric / sheet metal screw	4.5 - 6.0 / M6 / 6.3
Contents	TherMax, UX 12 x 70, SX Plus 5 x 25, cover cap
Packaging	Folding box
Amount	20 pcs.
GTIN (EAN-Code)	4006209456934

Drill diameter ( d₀ )	12 mm
Drill hole depth ( h₀ )	200 mm
Max. thickness of non-bearing layer ( e )	120 - 140 mm
Anchorage depth ( h_ef )	70 mm
Cover cap-ø ( ADK )	22 mm
Width across nut	13 mm
Chipboard / metric / sheet metal screw	4.5 - 6.0 / M6 / 6.3
Contents	TherMax, UX 12 x 70, SX Plus 5 x 25, cover cap
Packaging	Folding box
Amount	20 pcs.
GTIN (EAN-Code)	4006209456941

Drill diameter ( d₀ )	12 mm
Drill hole depth ( h₀ )	220 mm
Max. thickness of non-bearing layer ( e )	140 - 160 mm
Anchorage depth ( h_ef )	70 mm
Cover cap-ø ( ADK )	22 mm
Width across nut	13 mm
Chipboard / metric / sheet metal screw	4.5 - 6.0 / M6 / 6.3
Contents	TherMax, UX 12 x 70, SX Plus 5 x 25, cover cap
Packaging	Folding box
Amount	20 pcs.
GTIN (EAN-Code)	4006209456958

Drill diameter ( d₀ )	12 mm
Drill hole depth ( h₀ )	240 mm
Max. thickness of non-bearing layer ( e )	160 - 180 mm
Anchorage depth ( h_ef )	70 mm
Cover cap-ø ( ADK )	22 mm
Width across nut	13 mm
Chipboard / metric / sheet metal screw	4.5 - 6.0 / M6 / 6.3
Contents	TherMax, UX 12 x 70, SX Plus 5 x 25, cover cap
Packaging	Folding box
Amount	20 pcs.
GTIN (EAN-Code)	4006209456965
