Render fixing DIPK

The cost-effective anchor with plastic nail.

The fischer render fixing DIPK is ideal for securely fixing pressure-resistant insulation up to 160 mm thick such as polystyrene boards, wood wool lightweight panels and PU panels in concrete, solid and perforated brick. When using solid building materials, the GFK nail has to be shortened at the tapered breakage point. The render fixing DIPK comprises a white plug sleeve with attached disc and a glass-fibre reinforced plastic nail. The DIPK is inserted using a hammer. This saves time and money. The glass-fibre-reinforced plastic nail reduces the heat transmission and prevents marks on the plaster surface.

Описание на продукта

Advantages

The glass-fibre-reinforced plastic nail (GRP nail) reduces the heat transmission and prevents marks on the plaster surface.
The simple hammerset installation allows a quick installation process and thus reduces workload.
The well-proven design with low anchorage depth reduces the amount of drilling required, thus achieving a high level of efficiency.
The DIPK can be used universally in rear-ventilated curtain façades, as well as in plaster façades.
The surface of the anchor plate is suitable to use as a plaster base.

Налични варианти на продукта

Намерен(и)1 вариант(и) на продукта

Вариант

Anchor length

Amount

GTIN (EAN-Code)

Разгледан(и) 1 от 1 вариант(а)

Приложение и разрешение

Applications

To fix pressure-resistant insulating materials in façades, such as:

Polystyrene boards
Light building boards made of wood wool
Cork boards / coir matting
PU panels

Building materials

Concrete
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Natural stone with dense structure
Solid brick

* Подробна информация за строителните материали можете да намерите в документа за регистрация.

Инструкция за монтаж

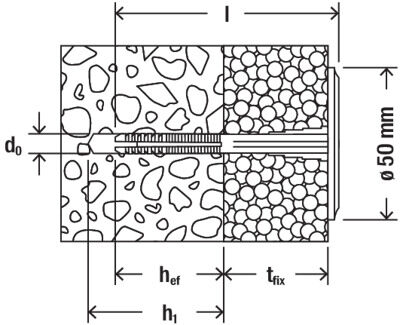

Functionality

Non-bearing layers, such as adhesive and/or old render, are to be included in the anchor's useful length.
The DIPK is set in push-through installation by using a hammer.
In solid materials the GRP nail needs to be shortened at the predetermined breaking point.
Driving the nail into the anchor shaft causes the DIPK to expand in the base material.

Компоненти на системата и свързани категории

Компоненти на системата

Masonry drill bit Pointer M

Masonry drill bit Pointer M

The perfect drill bit for all perforated building materials

Повече информация

Hammer drill bit Quattric II

The expert for the best performance in reinforced concrete

Повече информация

Anchor length l	90 [mm]
Amount	1 [pcs.]
GTIN (EAN-Code)	4006209415542
