Render fixing FIF-CS 8

The economic screw fixing for all ETICS insulation materials

The ETA approved fischer render fixing FIF-CS is ideal for fixing pressure-resistant insulation up to 340 mm thick for thermal insulation systems such as polystyrene boards or mineral wool boards in concrete, solid and perforated brick, lightweight aggregate concrete and aerated concrete securely . The uniform setting depth for all building materials simplifies installation. The screw fixing comprises a grey plug sleeve with attached octogonal disc and a compound screw. The compound screw minimises the thermal bridge. This in turn prevents plug marks on the façade. The FIF-CS is set with a standard screwdriver.

Описание на продукта

Advantages

Compound screw minimises the thermal bridge, thus there are no fixing marks on the façade.
Less drill wear and drill time due to minimum installation depth of 35 mm in the substrate.
With flush installation, the disc tapers to a very thin edge, thus providing for optimal retaining of the insulation panel and for application of thin render.
For insulation material thicknesses up to 340 mm.
Standard embedment depth for all building materials.

Налични варианти на продукта

Намерен(и)15 вариант(и) на продукта

Вариант

ETA-approval

Drill diameter

d₀

Min. drill hole depth

h₁

Effect. anchorage depth

h_ef

Легенда = Налично разрешение — = Няма налично разрешение

Разгледан(и) 15 от 15 вариант(а)

Приложение и разрешение

Applications

Fixing of ETICS insulation boards on concrete and masonry
Flush installation in all conventional insulation materials

Building materials

Building material classes A, B, C, D, E
Concrete
Concrete (weather shell)
Building brick
Solid sand-lime brick
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Lightweight aggregate concrete
Aerated concrete

* Подробна информация за строителните материали можете да намерите в документа за регистрация.

Разрешение

ETA-15/0006
DoP No. 0254
EPD-FIW-20210314-CBD1-EN

За подробности вж. съответните документи

Инструкция за монтаж

Functionality

The fixing is pushed through the insulation into the drilled hole and is screwed tight.
For lengths from 250 mm, at least 180 mm long TX25 bits are required. These are not included in the delivery assortment.

Документи за изтегляне

Допълнителни документи

Load Table (PDF, 44 KB)

Одобрения

Заглавие	Тип	Създаден	Валиден до
ETA Certification Document (PDF, 1 MB) European Technical Assessment for fischer FIF-CS-8 - Nailed-in plastic anchor for fixing of external thermal insulation composite systems with rendering in concrete and masonry	ETA-15/0006	31.5.2018 г.
DOP - Declaration of Performance (PDF, 1 MB) Declaration of Performance for fischer FIF-CS-8 (Plastic anchors for use in concrete and masonry)	DoP No. 0254	15.1.2021 г.
EPD - Environmental Product Declaration (PDF, 932 KB) Environmental Product Declaration for fischer Insulation fixings	EPD-FIW-20210314-CBD1-EN	22.2.2022 г.	21.2.2027 г.

Компоненти на системата и свързани категории

Компоненти на системата

Masonry drill bit Pointer M

Masonry drill bit Pointer M

The perfect drill bit for all perforated building materials

Повече информация

Hammer drill bit Quattric II

The expert for the best performance in reinforced concrete

Повече информация

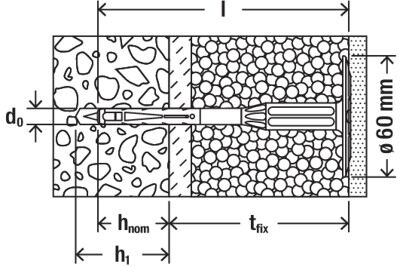

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	45 [mm]
Effect. anchorage depth h_ef	35 [mm]
Anchor length l	108 [mm]
Max. fixture thickness t _fix	70 [mm]
Disc Ø	60 [mm]
Amount	100 [pcs.]
GTIN (EAN-Code)	4048962231175

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	45 [mm]
Effect. anchorage depth h_ef	35 [mm]
Anchor length l	128 [mm]
Max. fixture thickness t _fix	90 [mm]
Disc Ø	60 [mm]
Amount	100 [pcs.]
GTIN (EAN-Code)	4048962231182

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	45 [mm]
Effect. anchorage depth h_ef	35 [mm]
Anchor length l	148 [mm]
Max. fixture thickness t _fix	110 [mm]
Disc Ø	60 [mm]
Amount	100 [pcs.]
GTIN (EAN-Code)	4048962231199

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	45 [mm]
Effect. anchorage depth h_ef	35 [mm]
Anchor length l	168 [mm]
Max. fixture thickness t _fix	130 [mm]
Disc Ø	60 [mm]
Amount	100 [pcs.]
GTIN (EAN-Code)	4048962231205

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	45 [mm]
Effect. anchorage depth h_ef	35 [mm]
Anchor length l	188 [mm]
Max. fixture thickness t _fix	150 [mm]
Disc Ø	60 [mm]
Amount	100 [pcs.]
GTIN (EAN-Code)	4048962231212
