Render fixing FIF-PN 8

The pre-assembled hammerset anchor with reinforced plastic nail

The ETA approved fischer render fixing FIF-PN is ideal for securely fixing pressure-resistant insulation up to 190 mm thick in the plaster façade such as polystyrene boards, wood wool lightweight panels and PU panels in concrete, solid and perforated brick. The fischer render fixing FIF-PN comprises a grey plug sleeve with preshaped octogonal disc and a plastic nail. The FIF-PN is set using a hammer. This saves time and money. The integrated hammer-in stop prevents the fixing from expanding prematurely, thus enabling a problem-free installation. The glass-fibre-reinforced plastic nail reduces the heat transmission and prevents marks on the plaster surface.

Описание на продукта

Advantages

To set with few hammer blows.
The disc fits tight into the insulation thanks to its thickness of only 2.7 mm. Thus allows the application of low-cost, thin reinforcement layers.
Optimised retention forces thanks to the glass fibre reinforced plastic nail (GRP).
Small anchoring depth of 35 mm saves on drilling times.
Thanks to the GRP nail, the fixing is free of thermal bridging with the Chi value 0.000 [W/K].
The compression zone in the shank allows the disc to be drawn precisely into the insulation.
For insulating material thicknesses up to 180 mm.

Налични варианти на продукта

Намерен(и)14 вариант(и) на продукта

Вариант

ETA-approval

Drill diameter

d₀

Min. drill hole depth

h₁

Anchor length

Легенда = Налично разрешение — = Няма налично разрешение

Разгледан(и) 14 от 14 вариант(а)

Приложение и разрешение

Applications

Fixing of ETICS insulation boards on concrete and masonry
Flush-to-surface installation in ETICS insulating materials e.g. polystyrene

Building materials

Building material classes A, B, C, D, E
Concrete
Building brick
Solid sand-lime brick
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Lightweight aggregate concrete
Aerated concrete

* Подробна информация за строителните материали можете да намерите в документа за регистрация.

Разрешение

ETA-18/0253
DoP No. 0256
EPD-FIW-20210314-CBD1-EN

За подробности вж. съответните документи

Инструкция за монтаж

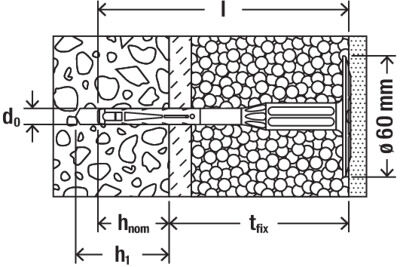

Functionality

The fixing is set in push-through installation.
Simple, fast setting by driving the GRP nail in using a standard hammer.
Non load bearing layers such as adhesive and old plaster are included in the maximum useful length.

Документи за изтегляне

Допълнителни документи

Load Table (PDF, 37 KB)

Одобрения

Заглавие	Тип	Създаден	Валиден до
ETA Certification Document (PDF, 2 MB) European Technical Assessment for FIF - PN - Nailed-in plastic anchor for fixing of external thermal insulation composite systems with rendering in concrete and masonry	ETA-18/0253	29.5.2018 г.
DOP - Declaration of Performance (PDF, 2 MB) Declaration of Performance for FIF-PN (Plastic anchors for use in concrete and masonry)	DoP No. 0256	15.1.2021 г.
EPD - Environmental Product Declaration (PDF, 932 KB) Environmental Product Declaration for fischer Insulation fixings	EPD-FIW-20210314-CBD1-EN	22.2.2022 г.	21.2.2027 г.

Компоненти на системата и свързани категории

Компоненти на системата

Hammer drill bit Quattric II

Hammer drill bit Quattric II

The expert for the best performance in reinforced concrete

Повече информация

Masonry drill bit Pointer M

The perfect drill bit for all perforated building materials

Повече информация

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	45 [mm]
Anchor length l	190 [mm]
Max. fixture thickness t _fix	150 [mm]
Disc Ø	60 [mm]
Amount	10 [pcs.]
GTIN (EAN-Code)	4048962340457

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	45 [mm]
Anchor length l	210 [mm]
Max. fixture thickness t _fix	170 [mm]
Disc Ø	60 [mm]
Amount	10 [pcs.]
GTIN (EAN-Code)	4048962340464

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	— [mm]
Anchor length l	110 [mm]
Max. fixture thickness t _fix	70 [mm]
Disc Ø	60 [mm]
Amount	10 [pcs.]
GTIN (EAN-Code)	4048962340419

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	— [mm]
Anchor length l	230 [mm]
Max. fixture thickness t _fix	190 [mm]
Disc Ø	60 [mm]
Amount	10 [pcs.]
GTIN (EAN-Code)	4048962340471

ETA-approval
Drill diameter d₀	8 [mm]
Min. drill hole depth h₁	45 [mm]
Anchor length l	130 [mm]
Max. fixture thickness t _fix	90 [mm]
Disc Ø	60 [mm]
Amount	10 [pcs.]
GTIN (EAN-Code)	4048962340426
