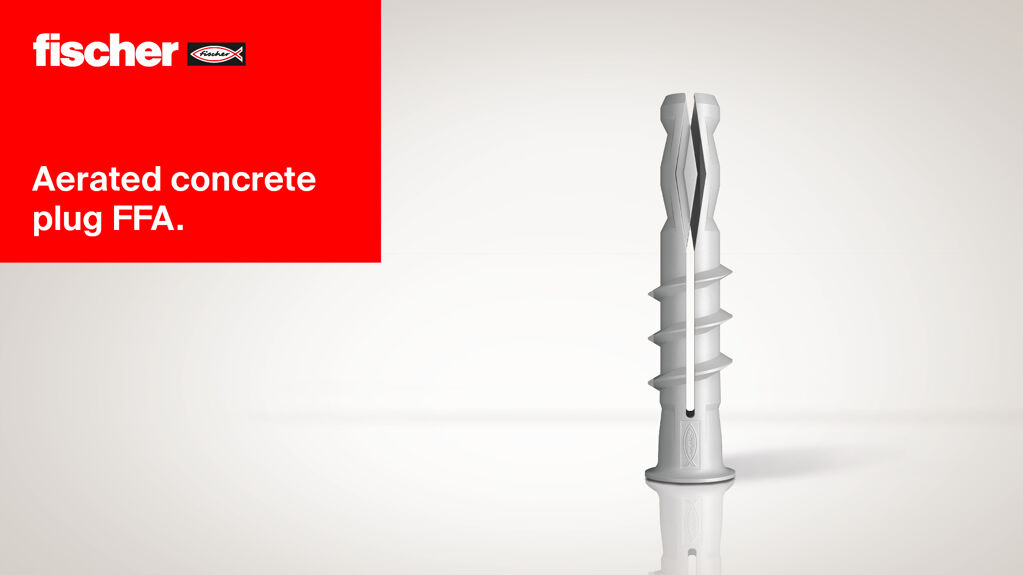

Aerated concrete plug FFA

Варианти на продуктите

9 Варианти на продукта

Drill diameter

Min. drill hole depth

Plug length = min. anchorage depth

Plug drive

Screw dimension

Drive

Разгледан(и) 9 от 9 вариант(а)

Advantages

The aerated concrete plug FFA is suitable for wood and chipboard screws in various diameters as well as for metric screws, thus offering a flexible choice of screws.
The spiral-shaped external thread cuts into the soft aerated concrete in a form-fitting manner. In addition, the plug expands when the screw is turned in. Secure and strong anchoring in the porous building material aerated concrete is guaranteed.
Thanks to the TX drive on FFA 8 and 10 and the hexagon socket on FFA 14, installation is easy without the need for special setting tools and with low setting energy.

Functionality

The FFA is suitable for pre-positioned installation.
The aerated concrete plug taps itself into the aerated concrete with a positive fit during the installation process.
When turning in the screw, the plug expands and anchors itself in the building material.
The required screw length is given by the plug length + fixture thickness + screw diameter.
Suitable for wood screws, chipboard screws and metric screws.
Use rotary drilling to create the drill hole.
For unplastered aerated concrete with a compressive strength of ≥ 6.0 N/mm², a larger drill diameter is recommended: FFA 8 ø 10 mm, FFA 10 ø 12 mm, FFA 14 ø 16 mm. Please observe the footnote below the load table.

Mounting Strip 1 Picture

1 / 5

Drill diameter( d₀ )	8 mm
Min. drill hole depth( h₁ )	60 mm
Plug length = min. anchorage depth( l = h_ef )	50 mm
Plug drive	TX40
Screw dimension	—
Drive	—
Wood and chipboard screws( d_s )	4.0 - 6.0 mm
Metric screw( M )	M4 - M5
Max. fixture thickness	—
Contents	30 x Aerated concrete plug FFA 8
Amount	30 pcs
Packaging	Folding box
GTIN (EAN-Code)	4048962575637

Drill diameter( d₀ )	8 mm
Min. drill hole depth( h₁ )	60 mm
Plug length = min. anchorage depth( l = h_ef )	50 mm
Plug drive	TX40
Screw dimension	—
Drive	—
Wood and chipboard screws( d_s )	4.0 - 6.0 mm
Metric screw( M )	M4-M5
Max. fixture thickness	—
Contents	4 x Aerated concrete plug FFA 8
Amount	4 pcs
Packaging	Blister card
GTIN (EAN-Code)	4048962575668

Drill diameter( d₀ )	10 mm
Min. drill hole depth( h₁ )	80 mm
Plug length = min. anchorage depth( l = h_ef )	62 mm
Plug drive	TX40
Screw dimension	—
Drive	—
Wood and chipboard screws( d_s )	5.0 - 7.0 mm
Metric screw( M )	M6
Max. fixture thickness	—
Contents	30 x Aerated concrete plug FFA 10
Amount	30 pcs
Packaging	Folding box
GTIN (EAN-Code)	4048962575644

Drill diameter( d₀ )	10 mm
Min. drill hole depth( h₁ )	80 mm
Plug length = min. anchorage depth( l = h_ef )	62 mm
Plug drive	TX40
Screw dimension	—
Drive	—
Wood and chipboard screws( d_s )	5.0 - 7.0 mm
Metric screw( M )	M6
Max. fixture thickness	—
Contents	4 x Aerated concrete plug FFA 10
Amount	4 pcs
Packaging	Blister card
GTIN (EAN-Code)	4048962575675

Drill diameter( d₀ )	14 mm
Min. drill hole depth( h₁ )	90 mm
Plug length = min. anchorage depth( l = h_ef )	70 mm
Plug drive	SW 8
Screw dimension	—
Drive	—
Wood and chipboard screws( d_s )	7.0 - 10.0 mm
Metric screw( M )	M8
Max. fixture thickness	—
Contents	20 x Aerated concrete plug FFA 14
Amount	20 pcs
Packaging	Folding box
GTIN (EAN-Code)	4048962575651
