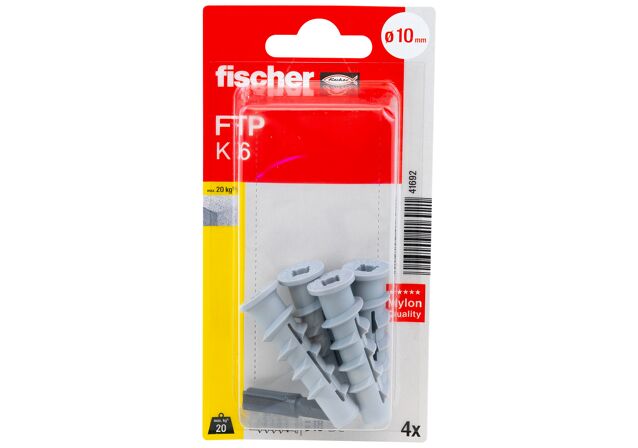

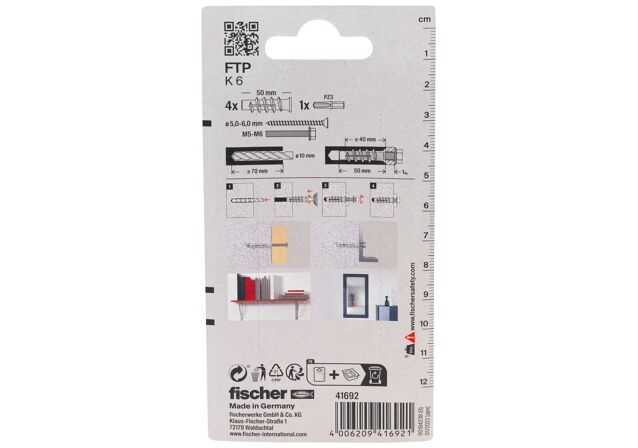

fischer Turbo aircrete anchor FTP K 6 K SB-card

Name: fischer Turbo aircrete anchor FTP K 6 K SB-card
Brand: fischer

Варианти на продуктите

Download of image data

Top Features

Installation with wood screws or metric screws is possible.
Fixing close to the rim is also possible.
Hold heavy objects.
Minimal effort needed during installation.

Артикулен номер
FTP EK 4/6

The versatile plastic anchor for aerated concrete.

Advantages

The FTP K is suitable for both wood screws and metric screws, and thus offers flexibility in screw choice.
The spiral-shaped outer thread taps itself into the soft aerated concrete with a positive fit, thus ensuring a secure hold.
Setting with the FTP EK setting tool requires only a small amount of force. For a convenient installation.
The special geometry allows for an almost expansion-force-free anchoring. This allows for small edge and spacing distances, and avoids splitting in the case of plastered surfaces.

The fischer turbo Aircrete anchor FTP K is a special fixing for fixings in Aircrete. The anchor is made out of high-quality nylon and is set in the pre-positioned installation with the setting tool FTP EK after pre-drilling. The spiral external thread cuts a mechanical interlock in the building material. The fischer turbo Aircrete anchor FTP K is ideally suited to securely fix pictures, lights, cable and pipe clamps to aerated concrete.

Drill hole diameter ( d₀ )	8 - (10) mm
Min. drill hole depth ( h₁ )	60 mm
Anchor length ( l )	50 mm
Metric screw ( M )	M5-M6
Min. bolt penetration ( l_E,min )	40 mm
Max. bolt penetration ( l_E,max )	60 mm
Drill diameter ( d₀ )	8 mm
Max. load in aerated concrete	20 kg
Contents	4 x FTP K6 1 x Profi-bit PH3
Amount	4 pcs
Packaging	Blister card
GTIN (EAN-Code)	4006209416921

fischer Turbo aircrete anchor FTP K 6 K SB-card

Предимства / Описание на продукта

Приложение и одобрение

Инструкции за монтаж

Технически данни

Документи за изтегляне
