The high-performance concrete screw for absolute installation ease in external applications.

Concrete screw UltraCut FBS II US R

The fischer concrete screw UltraCut FBS II US R, with the specially hardened red tip is a high-performance anchoring solution for fast installation. The concrete screw with the pressed washer is ideal for applications outside or in damp areas. The European Technical Approval for cracked concrete and non-cracked concrete as well as for seismic loads and classification into fire resistance class R 120 guarantee even more safety. The saw tooth geometry enables a quick and easy installation. No drill hole cleaning is required for installation in ceilings and floors. The expansion-free anchorage (undercut) ensures low edge and axial spacings.

Варианти на продуктите

Download of image data

Варианти на продуктите

Approvals / Test reports

21 product variants

Drill diameter

Min. drill hole depth for through fixings

Screw dimension

Nominal embedment depth / thickness of fixture

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	100 mm
Screw dimension ( d_s x l_s )	12.0x90 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 35 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 25 mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	85 / 5 mm
Drive	SW 15
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962308242

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	110 mm
Screw dimension ( d_s x l_s )	12.0x100 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 45 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 35 mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	85 / 15 mm
Drive	SW 15
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962308259

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	130 mm
Screw dimension ( d_s x l_s )	12.0x120 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 65 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 55 mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	85 / 35 mm
Drive	SW 15
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962308266

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	150 mm
Screw dimension ( d_s x l_s )	12.0x140 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 85 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 75 mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	85 / 55 mm
Drive	SW 15
Packaging	—
Amount	50 pcs
GTIN (EAN-Code)	4048962410853

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	170 mm
Screw dimension ( d_s x l_s )	12.0x160 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 105 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 95 mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	85 / 75 mm
Drive	SW 15
Packaging	—
Amount	50 pcs
GTIN (EAN-Code)	4048962410860

Legend = Permission Available— = Permission not Available

More results

Viewed 18 of 21 variant (s)

Advantages

The specially hardened red tip provides a faster and more secure installation.
The stainless steel concrete screw guarantees a high level of corrosion resistance especially for wet rooms and external applications.
The special saw tooth geometry enables fast cutting into the concrete.
Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
The ETA approval covers applications in cracked concrete and seismic power categories C1 and C2.
The approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again.
The three embedment depths, allow for using the UltraCut FBS II R in many different applications and enable a high flexibility.
The short UltraCut FBS II R, with a reduced embedment in depth, allows for a short drill hole depth, fast installation and less reinforcement hits.
The concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel CP and stainless steel R has an ETA for bricks of clay (EN771-1), solid sand-lime brick (EN771-2) and perforated sand-lime brick (EN771-2) for a flexible use in different substrates.
The installation of the concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel and stainless steel R in masonry brick can be made in the joints or in plastered substrates also in groups.

Applications

Guard rails
Consoles/Base plates
Metal profiles
Steel constructions
Façades
Protection barriers

Building materials

Approved for:

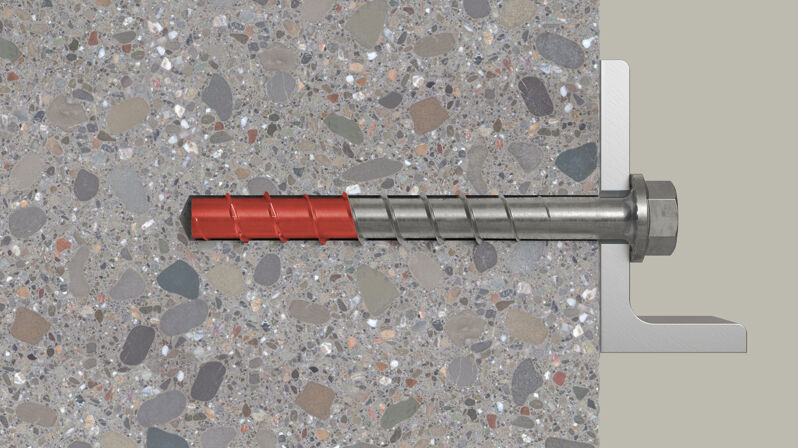

Concrete C20/25 to C50/60, cracked and non-cracked

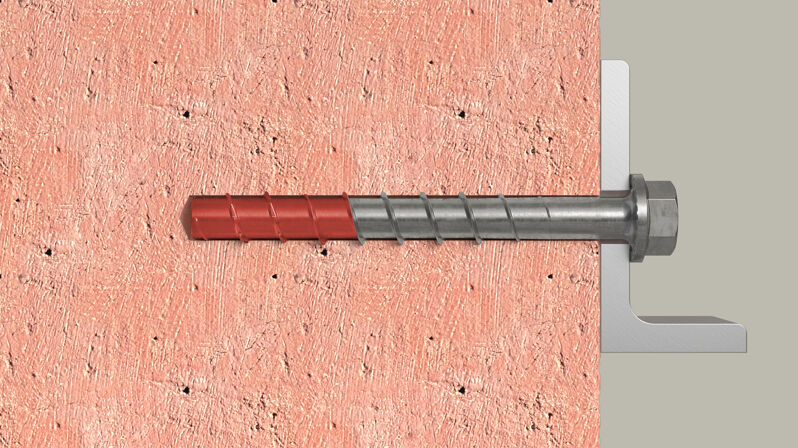

Bricks of clay (EN771-1)
Solid sand-lime brick (EN771-2)
Perforated sand-lime brick (EN771-2)

Suitable for:

Concrete C12/15
Solid building materials
Masonry with a dense structure

Подробна информация за строителните материали можете да намерите в регистрационния документ.

Одобрения

ETA-20/0134
ETA-17/0740
DoP No. 0311
DoP No. 0370

Functionality

The UltraCut FBS II R is recommended for the push-through installation.
Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
We recommend using a tangential impact screwdriver with a suitable impact screwdriver socket or an internal TX drive.
The screw is installed correctly when the screw head sits flush on the fixture and cannot be screwed in deeper (visual setting control).

Mounting Strip 1 Picture

1 / 7

Mounting Strip 2 Picture

1 / 3

Mounting Strip 3 Picture

1 / 2

ETA Certification Document

pdf, ETA-20/0134

European Technical Assessment for fischer concrete screw UltraCut FBS II - Screw anchor for use in masonry

Създаден на 14.07.2022 г.

DOP - Declaration of Performance

pdf, DoP No. 0311

Declaration of Performance for fischer concrete screw UltraCut FBS II (screw anchor for use in masonry)

Създаден на 28.07.2022 г.

ETA Certification Document

pdf, ETA-17/0740

European Technical Assessment for fischer concrete screw UltraCut FBS II R - Mechanical fasteners for use in cracked and uncracked concrete

Създаден на 08.01.2025 г.

DOP - Declaration of Performance

pdf, DoP No. 0370

Declaration of Performance for fischer concrete screw ULTRACUT FBS II R (Mechanical fastener for use in concrete)

Създаден на 03.02.2025 г.

Load Table

pdf,

Concrete screw UltraCut FBS II US R hexagon head with integral washer and FBS II SK R countersunk head - Permissible loads of a single anchor in normal concrete of strength class C20/25.
